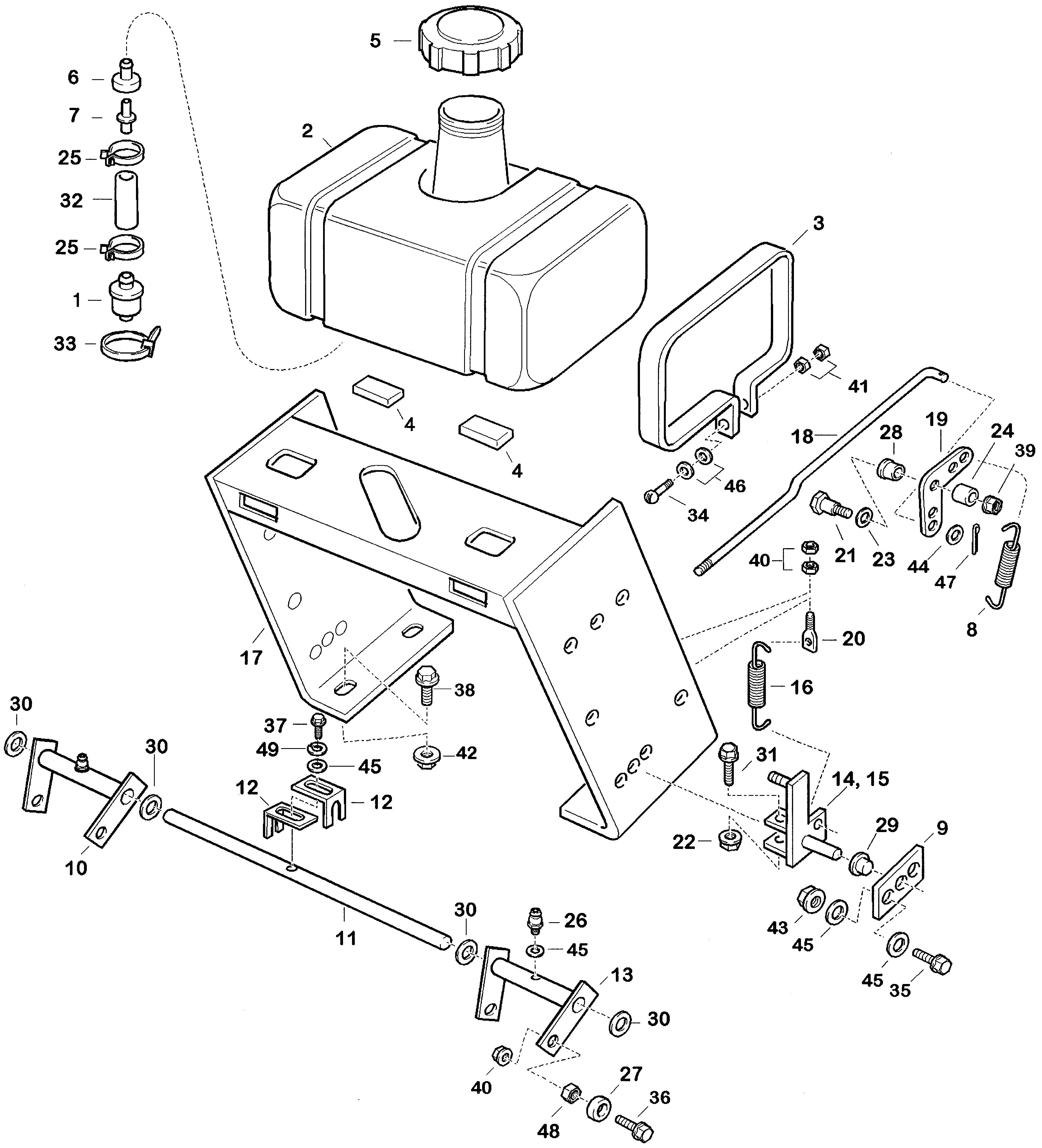

Commercial Mowers (36" - 48") HRC HRC7013 HRC7013K1 ZXA CPH1-2000001-9999999 FUEL TANK@BRACKET - Ace Hardware & Garden Center

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
16910-ZE8-015
Description
STRAINER, FUEL
Serial Range
1000001 - 9999999
Qty
Price
$11.52

Ref No
2
Part Number
17511-VE4-003
Description
TANK, FUEL (4.2)
Serial Range
1000001 - 9999999
Qty
Price
$96.64

Ref No
3
Part Number
17517-VE4-003
Description
STRAP, FUEL TANK
Serial Range
1000001 - 9999999
Qty
Price
$11.18

Ref No
4
Part Number
17532-VE4-003
Description
PAD, FUEL TANK
Serial Range
1000001 - 9999999
Qty
Price
$3.48

Ref No
5
Part Number
17620-VE4-003
Description
CAP, FUEL TANK
Serial Range
1000001 - 9999999
Qty
Price
$12.96

Ref No
6
Part Number
17713-VE4-003
Description
JOINT, CONNECTOR FUEL
Serial Range
1000001 - 9999999
Qty
Price
$4.72

Ref No
7
Part Number
17716-VE4-003
Description
PIPE, FUEL (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$3.80

Ref No
8
Part Number
22567-VE4-010
Description
SPRING, TENSIONER
Serial Range
1000001 - 9999999
Qty
Price
$10.20

Ref No
9
Part Number
24648-VE4-000
Description
SUPPORT, PUMP SHAFT
Serial Range
1000001 - 9999999
Qty
Price
$25.10

Ref No
10
Part Number
24650-VE4-000
Description
ARM, R. SPEED STOP
Serial Range
1000001 - 9999999
Qty
Price
$29.96

Ref No
11
Part Number
24656-VE4-000
Description
SHAFT, CROSS
Serial Range
1000001 - 9999999
Qty
Price
$21.72

Ref No
12
Part Number
24658-VE4-000
Description
SPACER, CROSS SHAFT
Serial Range
1000001 - 9999999
Qty
Price
$4.82

Ref No
13
Part Number
24660-VE4-000
Description
ARM, L. SPEED STOP (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$24.58

Ref No
14
Part Number
24670-VE4-010
Description
ARM, R. PUMP
Serial Range
1000001 - 9999999
Qty
Price
$60.96

Ref No
15
Part Number
24680-VE4-010
Description
ARM, L. PUMP
Serial Range
1000001 - 9999999
Qty
Price
$60.96

Ref No
16
Part Number
24689-VE4-000
Description
SPRING, PUMP ARM
Serial Range
1000001 - 9999999
Qty
Price
$93.10

Ref No
17
Part Number
53130-VE4-000
Description
SUPPORT, HANDLE
Serial Range
1000001 - 9999999
Qty
Price
$187.02

Ref No
18
Part Number
75278-VE4-A00
Description
ROD B, P.T.O.
Serial Range
1000001 - 9999999
Qty
Price
$12.94

Ref No
19
Part Number
75279-VE4-000
Description
BELLCRANK (3")
Serial Range
1000001 - 9999999
Qty
Price
$27.04

Ref No
20
Part Number
90101-VE4-000
Description
BOLT, SPRING ADJUSTER
Serial Range
1000001 - 9999999
Qty
Price
$3.02

Ref No
21
Part Number
90118-VE4-003
Description
BOLT, SHOULDER (3/8"-16)
Serial Range
1000001 - 9999999
Qty
Price
$7.02

Ref No
22
Part Number
90302-ZV4-000
Description
NUT, SELF-LOCK (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$5.04

Ref No
23
Part Number
90505-VE4-003
Description
WASHER, BELLEVILLE (1/2")
Serial Range
1000001 - 9999999
Qty
Price
$1.64

Ref No
24
Part Number
90517-VE4-003
Description
SPACER (1/2")
Serial Range
1000001 - 9999999
Qty
Price
$1.60

Ref No
25
Part Number
90653-VE4-003
Description
CLAMP, FUEL LINE
Serial Range
1000001 - 9999999
Qty
Price
$1.22

Ref No
26
Part Number
90953-VE4-003
Description
NIPPLE, GREASE
Serial Range
1000001 - 9999999
Qty
Price
$2.22

Ref No
27
Part Number
91052-VE4-000
Description
BEARING, PUMP STOP
Serial Range
1000001 - 9999999
Qty
Price
$11.54

Ref No
28
Part Number
91560-VE4-003
Description
BUSHING, SNAP
Serial Range
1000001 - 9999999
Qty
Price
$3.44

Ref No
29
Part Number
91564-VE4-003
Description
BUSHING, PUMP ARM
Serial Range
1000001 - 9999999
Qty
Price
$2.28

Ref No
30
Part Number
91567-VE4-003
Description
BUSHING (5/8")
Serial Range
1000001 - 9999999
Qty
Price
$1.46

Ref No
31
Part Number
92101-05025-0A
Description
BOLT, HEX. (5X25)
Serial Range
1000001 - 9999999
Qty
Price
$1.30

Ref No
32
Part Number
17701-VE4-003
Description
LINE, FUEL (24")
Serial Range
1000001 - 9999999
Qty
Price
$4.90
